BIBO – Bag In Bag Out is a safe bag-based filter replacement system, commonly used in cleanroom projects that require risk control when replacing contaminated filters. In high-risk areas such as pharmaceuticals, API, biology, chemicals, laboratories, or exhaust systems containing contaminants, filters after operation may accumulate active ingredient dust, microorganisms, aerosols, chemicals, or hazardous particles. If these filters are removed directly from the housing, release and exposure risks may immediately appear in the maintenance area.

The important point is that BIBO is not simply a device that is purchased and installed into the system. BIBO must be considered as part of the cleanroom project, from risk assessment, layout design, HVAC coordination, housing selection, bag selection, service space planning, installation, post-installation inspection, qualification, simulated filter replacement, operator training, to used-filter handling. If any of these steps is missing, the system may have the correct name but fail to achieve safe filter replacement in actual operation.

Therefore, when deploying BIBO in a cleanroom project, contractors should not only ask whether the equipment has the correct dimensions. They also need to ask: Is the installation location appropriate for the risk? Does the operator have enough space for bag-out? Is the bag suitable? Are the test ports accessible? Is the differential pressure gauge easy to observe? Has the SOP been prepared? Where will the used filter go after bag-out? Does qualification include simulated filter replacement? This article analyzes the full process of implementing BIBO in cleanroom projects, from design and installation to qualification.

Why Should BIBO Be Considered From the Cleanroom Project Design Stage?

BIBO should be considered from the design stage because it is not a device that can be easily added later. Unlike some auxiliary equipment that can be added when the layout is already relatively complete, BIBO is directly related to airflow, filter location, service space, door-opening direction, used-filter transport route, test ports, differential pressure gauges, and qualification criteria. If it is not considered from the beginning, the project may face many difficult-to-correct issues during installation or operation.

A common issue is insufficient bag-out space. BIBO needs clearance in front of the housing so the operator can attach the bag, open the door, remove the filter, pull the filter into the bag, seal the bag, and take out the used filter. If the equipment is positioned too close to a wall, too near another duct, or too high, this operation may not be performed safely. In that case, even though the equipment is called BIBO, the Bag In Bag Out principle may not be effective.

Another issue is that test ports or differential pressure gauges may be blocked. In cleanrooms, especially systems requiring HEPA leak testing or scan testing, test ports must be accessible. If a test port is obstructed by ductwork, supports, technical ceilings, or other equipment, qualification and periodic testing will be difficult. Similarly, if the differential pressure gauge is placed in a hard-to-see location, monitoring filter condition will not be convenient.

BIBO is also related to the used-filter handling route. After the contaminated filter is placed into the bag and bagged out, the filter bag must be transported, temporarily stored, or handled according to a suitable procedure. If this route is not considered in the design, operators may have to carry the used filter bag through inappropriate areas, increasing the risk of impact or secondary contamination.

Therefore, BIBO should be included in the design mindset from the beginning. Proper design not only supports smooth installation but also makes qualification easier, operation safer, and future modifications less costly.

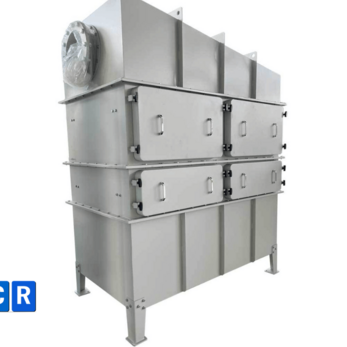

What Is BIBO – Bag In Bag Out in Cleanroom Systems?

BIBO stands for Bag In Bag Out, meaning a safe bag-based filter replacement system. In cleanroom systems, BIBO is usually designed as BIBO Filter Housing, meaning a filter enclosure or box with a bag attachment mechanism for removing contaminated filters under conditions that limit release. This equipment is used when filters after operation may contain contaminants that require control and should not be removed directly into the external environment.

BIBO is not the HEPA filter itself. HEPA Filter stands for High Efficiency Particulate Air, meaning a high-efficiency air filter. HEPA captures particles in the airflow. BIBO is the housing and safer filter replacement mechanism. In other words, HEPA is the filtration component, while BIBO is the system that helps remove the contaminated filter from the system inside a sealed bag.

Inside BIBO, HEPA filters, ULPA filters, pre-filters, or other filtration stages may be installed depending on system requirements. ULPA Filter stands for Ultra Low Penetration Air, meaning an air filter with extremely low particle penetration. A pre-filter is a primary or coarse filter. The filtration grade determines particle removal performance, while BIBO determines how the filter is replaced after it becomes contaminated.

The BIBO operating principle is clear. When filter replacement is required, the operator attaches a bag to the housing opening. The service door is opened within the bag. The contaminated filter is released from the holding mechanism, pulled into the bag, and then the bag is sealed before being separated from the housing. As a result, the filter does not leave the system in an open condition.

In cleanroom projects, BIBO may be used on exhaust air, return air, AHUs, ductwork, or filter sections serving high-risk areas. The core value of BIBO is not to make the air cleaner than HEPA filtration, but to make contaminated filter replacement safer. This is the point that contractors, investors, and operation teams must correctly understand before bringing the equipment into the design.

The Role of BIBO in Controlling Cleanroom Filter Replacement Risks

The main role of BIBO is to control risk at the moment when the contaminated filter leaves the housing. During operation, the filter may capture dust, particles, active ingredients, microorganisms, chemicals, aerosols, or other contaminants. While the filter remains inside the housing, the risk is kept within the system. But when the housing is opened and the filter is removed, the control state changes.

If the filter is removed directly, dust or contaminants on the filter may be released into the maintenance area. They may settle on gloves, protective garments, tools, floors, carts, or equipment surfaces. In cleanroom environments, especially GMP, biological, or chemical areas, such secondary contamination may affect operational safety, technical-area hygiene, and traceability.

BIBO reduces risk by creating a physical barrier during filter replacement. That barrier is the BIBO bag. When the contaminated filter is pulled into the bag and sealed before removal, the possibility of release into the surrounding environment is reduced. This is an important engineering control layer.

However, BIBO does not increase the HEPA filter grade. If HEPA H13 is installed inside, the system remains H13. If HEPA H14 is installed, the system remains H14. Filtration efficiency depends on the filter, installation tightness, airflow rate, and operating conditions. BIBO does not make the filter capture particles better; it makes contaminated filter replacement safer.

BIBO also does not replace SOP, PPE, or used-filter handling procedures. SOP stands for Standard Operating Procedure. PPE stands for Personal Protective Equipment. An effective BIBO system must combine equipment, procedure, operator, protection, and post-bag-out handling. If the equipment exists but no SOP is available or operators are not trained, risk may still occur.

When Should a Cleanroom Project Use BIBO?

A cleanroom project should use BIBO when filters after operation may contain hazardous contaminants and direct filter removal may cause release or exposure. This is the most important principle. BIBO should not be selected simply because the equipment sounds advanced; it should be selected because of the actual risk of the contaminated filter.

The first case is areas involving API or potent compounds. API stands for Active Pharmaceutical Ingredient. In raw material dispensing rooms, powder blending areas, cytotoxic drug manufacturing, or potent compound handling areas, airflow may carry active ingredient dust. Filters after operation may accumulate these particles. During filter replacement, BIBO helps reduce the risk of release into the maintenance area.

The second case is biological, microbiological, or laboratory areas involving biological agents. If the filter is installed on exhaust or return air from sample-handling areas, biological aerosols or microorganisms may be captured on the filter. Aerosols are airborne droplets or particles suspended in air. In this situation, safe bag-based filter replacement helps reduce risk for maintenance personnel.

The third case is chemical or high-risk material areas. If filters may contain chemical dust, toxic particles, or materials requiring control, direct filter removal may create release risk. BIBO helps enclose the filter before removal.

BIBO should also be considered if the used filter must be handled as hazardous waste, biological waste, or waste containing active ingredients. In such cases, placing the filter into a sealed bag at the moment it is removed from the housing is an important control point.

Conversely, not every HEPA location needs BIBO. If the filter is installed on a low-risk clean air supply path and mainly contains environmental dust, standard Filter Housing or a HEPA Box may be more suitable. The decision to use BIBO should be based on risk assessment, not assumption.

Common BIBO Installation Locations in Cleanroom Projects

In cleanroom projects, BIBO is commonly installed at locations where filters after operation may contain contaminants requiring control. The first common location is the exhaust air path. Exhaust air is air extracted from a production area, laboratory, or operating zone. If exhaust air passes through areas containing active ingredient dust, microorganisms, chemicals, or aerosols, the filter on this path may become a risk source during replacement.

The second location is the return air path. Return air is air sent back to the air handling system. In some systems, return air from high-risk areas may need to be filtered or treated before recirculation or discharge. If the return air filter may contain hazardous contaminants, BIBO should be considered.

The third location is the AHU. AHU stands for Air Handling Unit. If the AHU serves a high-risk area, filter sections inside the AHU should be evaluated to determine whether BIBO is needed. However, installing BIBO inside an AHU requires special attention to service space and accessibility.

The fourth location is ductwork. Ductwork is the air duct system. Some filter sections may be installed on ducts, near the process area, or before discharge points. If airflow inside the duct may carry contaminants, filter sections on ductwork may require BIBO.

In addition, BIBO may be arranged at filter sections downstream of active ingredient handling areas, biological zones, chemical areas, sample handling areas, or technical rooms. However, the installation location should not be based only on the duct drawing. It is necessary to assess the airflow passing through the filter, what the filter may contain after operation, and whether operators can perform bag-out safely.

A suitable location must meet two conditions: it must match the risk and it must allow maintainability. If the risk is correct but there is insufficient service space, the design still needs adjustment. BIBO only has value when the Bag In Bag Out operation can be performed correctly in practice.

Risk Assessment Before Including BIBO in the Design

Risk assessment is an important step before deciding to include BIBO in the design. Without risk assessment, a project may make two opposite mistakes: using BIBO where it is unnecessary or missing BIBO at high-risk locations. Both are not optimal. One increases cost and complexity, while the other increases operational risk.

The assessment should begin with the product or process type. Does the project involve pharmaceutical active ingredients, bioproducts, microorganisms, chemicals, fine powders, cytotoxic drugs, or hazardous materials? If so, airflow paths related to those areas need more careful analysis.

Next is the airflow type. Is the filter on supply air, return air, or exhaust air? Clean supply air usually has lower risk if it only brings treated air into the room. Return air and exhaust air from high-risk areas need closer review because they may carry contaminants from production or operations.

The most important question is what the filter may contain after operation. A new filter is a clean consumable, but after operation it may accumulate what the system has captured. If it is only environmental dust, the risk is lower. If it includes active ingredients, microorganisms, chemicals, or aerosols, the filter replacement risk is higher.

It is also necessary to consider who will replace the filter and whether they may be exposed. Replacement personnel may be maintenance staff, HVAC technicians, or service contractors. Are they trained? Do they have suitable PPE? Can they work in a space that is adequate for the operation?

Finally, the assessment should consider whether the used filter must be handled as hazardous waste. If so, bag-out at the moment of filter removal is very reasonable. The risk assessment should also determine whether containment is required. If enclosed filter replacement is required, BIBO should be included in the design from the beginning.

Layout Design Requirements When Arranging BIBO

Layout design is one of the factors that determines whether BIBO can operate effectively. BIBO needs more service space than standard Filter Housing because the operator does not only open the door and remove the filter, but also attaches the bag, pulls the filter into the bag, seals the bag, and removes the used filter bag.

First, the door-opening direction must be defined. The service door must be able to open within the bag and must not be obstructed by walls, ducts, supports, or other equipment. If the door-opening direction is unsuitable, the operator will struggle, and the bag may be pulled out of position or torn.

Clearance in front of the housing is also very important. This clearance must be enough for the bag length, filter depth, filter pulling direction, and the operator’s working posture. If the filter is large or heavy, additional space is needed for support, turning, and removal.

Installation height must also be considered. If BIBO is installed too high, the operator may need a ladder or unsafe posture for filter replacement. If it is installed too low or obstructed by technical flooring, pulling the filter may also be difficult. A good design must allow filter replacement to be stable and repeatable.

The transport route for the used filter after bag-out should be included in the layout. Where will the used filter bag go? Is a cart needed? Will it pass through a clean area, technical area, or temporary storage area? If this route is unclear, risk may shift from filter removal to transport.

In addition, the differential pressure gauge and test ports must be accessible. If the gauge is blocked, the operation team cannot monitor it easily. If the test port is obstructed, the qualification team cannot perform testing conveniently. Therefore, BIBO layout design is not simply placing equipment in an empty space; it is designing a complete service environment for the entire operating life cycle.

Technical Design Requirements for BIBO Filter Housing

BIBO Filter Housing must meet requirements for air filtration, tightness, maintenance, and safe filter replacement. The first requirement is housing material. The material must be suitable for the cleanroom environment, with mechanical strength, cleanability, and corrosion resistance if the system is related to chemicals or special operating conditions. Surfaces should limit sharp edges, crevices, and dust accumulation points.

The second requirement is tightness. The housing, service door, gasket, ductwork connections, filter seating position, and bag attachment opening must be designed to limit leakage. A gasket is a sealing component. If tightness is not ensured, air may bypass the filter or contaminants may escape during filter replacement.

The third requirement is filter compatibility. HEPA or ULPA grade, filter size, filter frame material, gasket type, airflow direction, design airflow rate, initial resistance, and final resistance must be defined. HEPA Filter is a high-efficiency air filter. ULPA Filter is an air filter with extremely low particle penetration. BIBO does not replace the need to select the correct filter.

The service door, filter lock, and filter compression mechanism must be designed to be secure during operation but practical during filter replacement inside the bag. If the filter lock is too stiff or the compression mechanism is difficult to open, the operator may use excessive force, increasing the risk of bag tearing or filter impact.

The bag attachment opening and bag clamping ring are very important parts of BIBO. The bag must be attached securely and must not slip off when the filter is pulled. The clamping mechanism should be easy to operate, easy to inspect, and strong enough to hold the bag throughout the bag-out process.

Test ports and differential pressure gauges must also be properly integrated. The differential pressure gauge helps monitor filter condition. Test ports support HEPA leak testing, scan testing, or DOP/PAO testing if required by the project. A good BIBO system is not only correct in material and dimensions; it must also support testing, maintenance, and safe filter replacement under actual conditions.

Selecting Filters, BIBO Bags, and Accessories

Filters, BIBO bags, and accessories should be selected as a complete set. The housing should not be selected first and then matched later with whatever bag or filter is available. BIBO is a system in which the housing, filter, bag, gasket, clamping ring, differential pressure gauge, and test ports must be compatible.

The filter should be selected according to the system’s control requirements. If the project requires HEPA H13, HEPA H14, or ULPA, the filter grade, dimensions, airflow rate, resistance, frame material, and gasket position must be clearly defined. It should be remembered that BIBO does not increase filtration efficiency. If higher efficiency is needed, the correct filter grade must be selected.

The BIBO bag is the central component of the Bag In Bag Out principle. The bag must be correctly sized to contain the contaminated filter after it is pulled out of the housing. If the bag is too small, pulling the filter will be difficult and the risk of tearing will increase. If the bag is too thin or not suitable for the filter weight, it may fail during operation.

The bag must also be compatible with the contaminant type. If the filter may contain active ingredients, microorganisms, or chemicals, the bag material and sealing method should match the used-filter handling procedure. In some cases, additional packaging may be required after bag-out.

The bag clamping ring or holding mechanism must be compatible with the housing opening. If the clamp is not secure, the bag may slip during filter removal. If the clamp is too difficult to operate, operators may install it incorrectly or unevenly. Therefore, this accessory should be verified during simulated operation.

Differential pressure gauges, test ports, and installation accessories should also be selected according to qualification criteria. If the project requires HEPA leak testing, suitable test ports are needed. If regular filter monitoring is required, the differential pressure gauge must have an appropriate measuring range and be easy to observe.

Coordinating BIBO With HVAC, AHU, and Ductwork

BIBO cannot be selected separately from the HVAC system, AHU, and ductwork. HVAC stands for Heating, Ventilation and Air Conditioning. AHU stands for Air Handling Unit. Ductwork is the air duct system. BIBO is located in the airflow path, so it affects airflow rate, resistance, connection dimensions, airflow direction, and system balancing.

First, the airflow rate through BIBO must be defined. Airflow determines filter size, face velocity, and resistance. If the housing is too small for the airflow, filter velocity may be high, resistance may increase, and filter life may decrease. If the housing is too large and the layout is unsuitable, cost and space may increase unnecessarily.

Filter and housing resistance must be considered in HVAC design. As the filter becomes loaded, differential pressure increases. If the fan or control system does not account for final resistance, airflow may fail to meet requirements after a period of operation. This affects room pressure, cleanliness class, and air balance.

Ductwork connection dimensions must be suitable. If duct transitions are poorly designed, they may cause pressure loss, vibration, noise, or uneven airflow distribution. BIBO should be treated as part of the air path, not as a separate mechanical item.

MEP contractors, cleanroom contractors, and equipment suppliers should coordinate early. If the equipment supplier does not know the actual layout, they may propose BIBO equipment that meets specifications but is difficult to install. If the HVAC contractor does not account for BIBO resistance, the system may be difficult to balance. If the cleanroom team does not plan service space, qualification may encounter problems.

Good coordination helps BIBO meet both technical requirements and practical construction conditions. This is especially important in cleanroom projects involving multiple parties.

Installing BIBO on Site: Key Points to Control

When installing BIBO on site, the first point to control is the installation position according to the approved drawing. BIBO should not be moved arbitrarily just for construction convenience, because position changes may affect airflow direction, service space, test ports, differential pressure gauges, and the used-filter transport route.

Airflow direction must match the design. If installed in the wrong airflow direction, the filter and housing may not operate correctly. The door-opening direction must also be correct. The service door must open toward the side with enough space for attaching the bag and pulling the filter. If the door opens toward a wall or duct obstruction, BIBO will be difficult to use.

Supports and suspension structures must be strong enough. BIBO can be relatively heavy, especially when large filters or multiple filtration stages are installed. If the support is unstable, the housing may vibrate, deform, or shift, affecting tightness and maintenance operation.

Duct connections must be tight and secure. Joints between BIBO and ductwork should be checked to prevent leakage. If the system requires release control, leakage at the connection may affect the entire design objective.

The service door, gasket, compression mechanism, bag attachment opening, bag clamping ring, test ports, and differential pressure gauge should be inspected after installation. During transport or construction, these parts may become misaligned, dented, dirty, or damaged.

A very important point is checking the ability to attach the bag. The project should not wait until final qualification to discover that the bag cannot be attached or that there is not enough space to pull the filter. BIBO should not be installed merely because “it fits.” Correct installation means installation that allows future operators to replace filters safely according to procedure.

Post-Installation Checks Before Formal Qualification

After BIBO installation, preliminary checks should be performed before formal qualification. This step helps detect errors early and prevents last-minute corrections under schedule pressure.

The first inspection items are appearance and dimensions. Is the housing dented, scratched, deformed, or dirty? Is the installation location consistent with the drawing? Is the service clearance consistent with the design? Can the door open through its full travel? These questions should be checked on site.

Next, airflow direction and duct connections should be checked. Airflow direction must match the design. Ductwork joints must be tight, secure, and must not deform the housing. If a joint is misaligned or under stress, housing tightness may be affected.

The service door, bag clamping mechanism, gasket, and filter compression mechanism should be checked. The door must open and close stably. The gasket must not be cracked, displaced, or damaged. The bag clamping mechanism must function correctly and securely. The compression mechanism must hold the filter steadily and apply even force.

The differential pressure gauge and test ports should be checked for location. Is the gauge easy to observe? Are differential pressure tubes kinked or incorrectly connected? Is the test port blocked? Is there enough space to operate testing equipment?

Most importantly, bag-out service space must be checked. Is there enough space to attach the bag? Can the bag extend to its required length? Can the filter be pulled out in the intended direction? Are there any obstacles on the used-filter removal route? If there are issues, they should be corrected before formal qualification.

What Should Be Checked During BIBO Qualification in a Cleanroom Project?

BIBO qualification in a cleanroom project should include documentation, equipment, installation, and safe bag-based filter replacement capability. It should not only check whether the filter passes, because the core value of BIBO is risk control during filter replacement.

First, technical documentation should be reviewed. Documentation should include equipment drawings, installation drawings, housing specifications, materials, filter grade, airflow rate, resistance, airflow direction, bag type, accessories, operating instructions, and related certificates if available. These documents are the basis for comparison with actual installation.

Next, appearance, dimensions, and location should be checked. BIBO must match the required configuration, correct airflow direction, correct position, have no deformation, and provide sufficient service space. The service door, filter lock, compression mechanism, gasket, bag attachment opening, and bag clamping ring must function properly.

Tightness and filter installation should be checked. The filter must have the correct grade and dimensions and must be compressed tightly against the gasket. If the project requires it, HEPA leak testing, scan testing, or DOP/PAO testing should be performed. HEPA leak testing checks for leakage in the HEPA filter. Scan testing is filter leak scanning. DOP/PAO testing uses test aerosol.

The differential pressure gauge should be checked for measuring range, visibility, and tubing. Test ports must be accessible and suitable for the testing method. If these points fail, the system may face difficulties during periodic testing or after filter replacement.

One item that must not be skipped is simulated filter replacement. The qualification team should verify that the operator can attach the bag, open the door, remove the filter, pull it into the bag, seal the bag, and remove the filter. If qualification skips this step, the project may fail to detect layout or operation issues until the real filter is already contaminated.

Why Is Simulated Filter Replacement Needed During BIBO Qualification?

Simulated filter replacement is very important during BIBO qualification because it verifies the actual operability of the equipment. A BIBO unit may have correct dimensions, materials, and specifications, but if the operator cannot replace the filter safely using the bag, the equipment has not achieved its objective.

Simulation checks the full operation sequence: attaching the bag to the housing, checking the bag clamp, opening the door within the bag, releasing the filter lock, pulling the filter into the bag, sealing the bag, and removing the filter. This sequence cannot be fully assessed only by reviewing drawings or inspecting appearance.

Simulation also helps detect layout errors. For example, the door may hit a duct, the bag may not have enough space to unfold, the filter may not be pulled straight out, the differential pressure gauge may sit directly in the working path, or the test port may be blocked. These issues are often not obvious on 2D drawings but appear immediately during real handling.

Simulation also helps identify problems with the bag clamping mechanism. If the bag is difficult to attach, the clamp is uneven, or the bag tends to slip during filter pulling, adjustments are needed before the system begins operation. When the real filter is already contaminated, discovering this issue is much riskier.

In addition, simulation provides initial training for the operation team. Filter replacement personnel can understand the equipment, working posture, removal sequence, and key points to watch. If simulated operation is already difficult, the design, equipment, or SOP should be adjusted before handover.

Skipping simulated filter replacement is a common mistake. A project may qualify the equipment formally but overlook actual operability. With BIBO, actual operation is the core value.

SOP, PPE, and BIBO Operation Training After Qualification

After qualification, the facility or operation team needs a clear BIBO filter replacement SOP. SOP stands for Standard Operating Procedure. The SOP does not only describe steps; it also provides evidence that filter replacement is controlled.

The SOP should include preparation steps, system condition check, bag preparation, bag inspection, tool preparation, PPE preparation, confirmation of shutdown or isolation conditions if required, bag attachment, door opening, filter removal, pulling the filter into the bag, sealing, used-filter removal, new filter installation, post-replacement inspection, and documentation.

PPE stands for Personal Protective Equipment. BIBO does not replace PPE. Operators still need protection suitable for the risk of the contaminated filter. Depending on the contaminant, PPE may include gloves, goggles, masks, protective garments, or respiratory protection.

Operator training should include both theory and practice. Operators must understand the Bag In Bag Out principle, know why the bag must be attached before opening the door, why the bag must be sealed before separation from the housing, and why contaminated filters must not be pulled out directly.

Training should also include incident handling. What should be done if the bag tears? What if the clamp is not tight? What if the filter is stuck? If release is suspected, who should be notified? These questions must be answered in the SOP and practiced during training.

BIBO only performs effectively when the equipment, SOP, PPE, and operators work together correctly. If the project only hands over the equipment without training, a significant risk gap remains.

Used-Filter Handling After Bag-Out in Cleanroom Projects

After the filter has been placed into the bag and bagged out, the risk has not ended. The bag containing the contaminated filter may still contain active ingredients, microorganisms, chemicals, aerosols, or other contaminants requiring control. Therefore, used-filter handling after bag-out is an important part of the BIBO procedure.

First, the used filter bag should be labeled if required by the procedure. The label should show the filter location, replacement date, operator, risk type, and handling direction. Labeling helps prevent confusion between high-risk used filters and ordinary waste.

In some cases, additional packaging is required. If the filter is large, heavy, or may tear the bag during transport, an outer bag or suitable container should be used. If the filter is related to active ingredients, microorganisms, or chemicals, packaging should match the corresponding waste procedure.

The used-filter transport route should be defined in advance. Operators should not have to decide the route during the operation. The used filter bag should be moved through a suitable route to the temporary storage or treatment area. Avoid passing through clean areas, crowded areas, or areas with impact risk.

If the project is a GMP environment, used-filter handling records should be retained for traceability. Records may include filter code, installation location, replacement date, operator, bag condition, sealing method, transport route, temporary storage location, and final handling method.

BIBO only controls the step of removing the filter from the housing. If post-bag-out handling is incorrect, risk may shift to transport or disposal. Therefore, a complete BIBO procedure must include used-filter handling.

Documentation Required for BIBO in Cleanroom Projects

Documentation is an important part of any cleanroom project, especially when the project involves GMP or controlled environments. For BIBO, documentation is not only for handover, but also for traceability, maintenance, qualification, and investigation when abnormalities occur.

The first group is design and technical documentation. This should include equipment drawings, installation drawings, layout position, dimensional specifications, housing material, airflow direction, airflow rate, resistance, filter grade, gasket type, BIBO bag, bag clamping mechanism, differential pressure gauge, and test ports.

The second group is filter documentation. If required by the project, filter certificates, filter grade specifications, dimensions, frame material, airflow direction, gasket information, and storage conditions should be available. The filter determines filtration performance, so the documentation must be clear.

The third group is installation and operation instructions. These documents help the construction team install correctly, the operation team use the equipment correctly, and the maintenance team replace filters correctly. Without instructions, post-handover operation may depend too much on individual experience.

The fourth group is qualification records and test results. These include visual inspection records, installation inspection, tightness checks, differential pressure checks, test port checks, HEPA leak testing or scan testing if applicable, and especially simulated filter replacement records.

The fifth group is SOP, training records, and used-filter handling records. These documents prove that BIBO is not only installed but also controlled during operation. In GMP environments, this is very important during audits or when incident traceability is needed.

Common Mistakes When Implementing BIBO in Cleanroom Projects

The first mistake is adding BIBO too late. When the layout, HVAC, and ductwork are nearly complete, adding BIBO may cause insufficient service space, duct conflicts, or difficulty arranging the used-filter route. BIBO should be considered during design, not added at the end of the project.

The second mistake is selecting BIBO without risk assessment. If BIBO is used at every filtration point, the project may increase cost unnecessarily. If BIBO is not used at high-risk locations, filter replacement risk may increase. Each filtration point needs specific evaluation.

The third mistake is insufficient filter replacement space. This is very common. The equipment may fit in place, but the operator may not have enough room for bag-out. Fitting in the space does not mean it can be operated.

The fourth mistake is selecting the wrong bag size or a bag that is not strong enough. A bag that is too small, too thin, or unsuitable for the filter weight reduces the value of BIBO. The bag is a central component, not a secondary accessory.

The fifth mistake is ignoring housing tightness. If the housing, gasket, or joint is not tight, filtration performance and release control are both affected. BIBO must be controlled as a tight system.

The sixth mistake is missing test ports or having test ports that are difficult to access. This creates difficulties for qualification and periodic testing. A test port that exists but is blocked has almost no practical value.

The seventh mistake is not performing simulated operation. This causes many issues to appear only after the real filter is already contaminated. At that point, the risk is higher and corrections are more difficult.

The final mistake is lacking SOP, PPE, and used-filter handling procedures. BIBO is not an automatically safe device. It is safe only when integrated with suitable procedures and people.

Checklist for Implementing BIBO From Design to Qualification

An effective BIBO implementation project should begin with risk assessment. The project needs to identify contaminant type, airflow type, filter location, filter condition after operation, replacement personnel, containment requirements, and used-filter handling plan. This is the foundation for deciding whether BIBO is needed.

Next is determining the installation location. The location must match the airflow risk and provide enough service space. Door-opening direction, filter pulling direction, bag length, used-filter transport route, differential pressure gauge location, and test port location must be defined.

Then the BIBO Filter Housing configuration should be selected. Housing material, filter grade, filter size, airflow rate, resistance, gasket, filter compression mechanism, bag attachment opening, bag clamping ring, differential pressure gauge, and test ports must be specified. The equipment must be compatible with HVAC, AHU, and ductwork.

The next step is coordination with HVAC/MEP design. Resistance, connection dimensions, airflow direction, airflow balancing, and pressure control must be considered. If BIBO changes pressure loss, the fan and control system must account for this.

During installation, the project must control position, airflow direction, door-opening direction, supports, duct joints, tightness, service door, gasket, bag clamping mechanism, test ports, and differential pressure gauge. After installation, preliminary checks should be conducted before qualification.

During qualification, documentation, equipment, tightness, filter installation, differential pressure, test ports, required filter testing, and simulated filter replacement must be checked. After qualification, documentation, SOP, operator training, and used-filter handling procedures should be handed over.

As a cleanroom equipment supplier for cleanroom contractors, VCR Cleanroom Equipment can support consultation on BIBO Filter Housing configurations suitable for layout, HVAC, AHU, ductwork, exhaust air, return air, and qualification requirements of each project.

FAQ – Frequently Asked Questions About BIBO in Cleanroom Projects

Question: What is BIBO in a cleanroom project?

BIBO is a Bag In Bag Out system, meaning safe bag-based filter replacement. In cleanroom projects, BIBO is commonly used at filtration points where filters after operation may contain contaminants requiring control.

Question: Does BIBO need to be considered from the design stage?

Yes. BIBO should be considered from the design stage because it is related to installation location, airflow, service space, door-opening direction, test ports, differential pressure gauges, and used-filter handling routes.

Question: Where is BIBO commonly installed in cleanrooms?

BIBO is commonly installed on exhaust air paths, return air paths, AHUs, ductwork, or filter sections serving API, biological, chemical, laboratory, or high-risk areas.

Question: Is BIBO mandatory in every cleanroom project?

No. BIBO is not mandatory in every cleanroom project. Its use depends on the risk assessment of the filter after operation and release control requirements during filter replacement.

Question: Does BIBO increase HEPA filtration efficiency?

No. BIBO does not increase HEPA filtration efficiency. Filtration efficiency depends on the filter installed inside. BIBO makes contaminated filter replacement safer.

Question: When should BIBO be used instead of standard Filter Housing?

BIBO should be used when filters after operation may contain active ingredients, microorganisms, chemicals, aerosols, or hazardous contaminants, and when direct filter removal may cause release or exposure.

Question: What should be considered during BIBO installation?

Installation should consider location, airflow direction, door-opening direction, filter replacement space, duct joint tightness, gasket, bag clamping mechanism, differential pressure gauge, test ports, and practical bag attachment.

Question: What should be checked during BIBO qualification?

Qualification should check technical documentation, materials, dimensions, location, tightness, filter installation, differential pressure, test ports, HEPA leak testing if required, and simulated filter replacement.

Question: Why is simulated filter replacement needed during BIBO qualification?

Simulated filter replacement verifies whether the equipment can perform the Bag In Bag Out principle correctly. It helps detect layout, service door, bag, clamp, or maintenance space issues before the real filter becomes contaminated.

Question: Does BIBO filter replacement require SOP and PPE?

Yes. BIBO does not replace SOP and PPE. Operators need a standard operating procedure, suitable personal protective equipment, and practical training before replacing real filters.

Question: How should used filters be handled after Bag Out?

After Bag Out, used filters should be labeled, transported, temporarily stored, and handled according to contaminant type, such as active ingredients, microorganisms, chemicals, or hazardous waste.

Question: What documents should contractors prepare when handing over BIBO?

Contractors should prepare drawings, equipment specifications, filter specifications, installation instructions, operating instructions, qualification records, test results, SOP, training records, and used-filter handling plans if included in the handover scope.

Conclusion: BIBO Should Be Implemented as Part of the Cleanroom System, Not as a Standalone Device

BIBO in cleanroom projects should be viewed as a filter replacement risk-control solution, not as a standalone device that can be installed anywhere. For BIBO to deliver its real value, the project must consider design, risk assessment, layout, HVAC, AHU, ductwork, installation, qualification, SOP, PPE, training, and used-filter handling.

If only the equipment is selected without considering real operation, BIBO may fail to achieve its safety objective. The equipment may meet specifications but lack bag-out space, have blocked test ports, use unsuitable bags, or be operated without an SOP. In that case, the risk only appears later, usually when the real filter is already contaminated and needs replacement.

Effective BIBO implementation helps the project reduce release risk, exposure risk, secondary contamination, and qualification difficulties. Proper design from the beginning supports smoother installation, stable operation, and safer maintenance throughout the cleanroom life cycle.
