BIBO – Bag In Bag Out is a safe bag-based filter replacement principle used in cleanroom systems, HVAC systems, AHUs, or ductwork where risk control is required when removing contaminated filters. The term “Bag In Bag Out” directly describes how the system operates: operators use a bag to handle the filter, insert the filter, or remove the contaminated filter from the housing under conditions that limit the release of dust, microorganisms, active ingredients, chemicals, or other contaminants.

The key value of BIBO is not that it makes HEPA or ULPA filters “filter cleaner,” but that it makes filter replacement safer. After a filter has operated for a long time, it may accumulate contaminants captured by the system. If the filter is removed directly, these contaminants may be released into the maintenance area or affect operators. BIBO addresses this risk by creating a physical barrier through the filter replacement bag.

In pharmaceutical factories, API handling areas, biosafety laboratories, chemical areas, high-risk product manufacturing areas, or cleanroom exhaust air systems, correctly understanding the operating principle of BIBO helps contractors, investors, and operation teams select the right equipment, arrange the correct installation location, develop proper procedures, and qualify the system according to the intended safety objective.

Why Is It Important to Understand the Operating Principle of BIBO?

Many people know BIBO as a safe filter replacement system, but they may not fully understand why it is called Bag In Bag Out. A common misunderstanding is to view BIBO as a special filter or a more “advanced” version of a HEPA Filter. In reality, BIBO is not a HEPA filter. BIBO is a housing mechanism that supports safe bag-based filter replacement, helping better control the removal and installation of contaminated filters.

Understanding the BIBO principle is important because it directly affects how the equipment is selected, installed, operated, and qualified. If BIBO is seen only as a more expensive filter box, contractors may choose the wrong location, investors may spend on the wrong requirement, and operation teams may follow an incorrect filter replacement procedure. In that case, the equipment may be called BIBO, but it will not deliver its intended risk-control value.

The focus of BIBO is the contaminated filter replacement stage. During normal operation, HEPA filters, ULPA filters, or other filter stages capture dust, particles, microorganisms, active ingredients, chemicals, or contaminants in the airflow. After a period of use, the filter becomes the place where those contaminants accumulate. When filter replacement is required, the risk is no longer only in the operating airflow, but also in the contaminated filter being removed from the system.

If the filter contains only ordinary environmental dust, standard filter replacement procedures may be sufficient. But if the filter is installed on an exhaust air path from an active ingredient handling area, a biological laboratory, a chemical zone, or a high-risk dust area, direct filter removal may release contaminants. This is why BIBO should be understood as a maintenance risk-control solution, not merely a mechanical component.

Understanding the BIBO principle also helps determine when it should and should not be used. BIBO is not mandatory for every cleanroom, but it should be seriously considered in locations where contaminated filters may become a release source. Once the Bag In Bag Out principle is properly understood, contractors and operation teams can see that the value of BIBO lies not in the equipment name, but in how it controls the filter replacement process.

What Is BIBO in Cleanroom Systems?

BIBO stands for Bag In Bag Out, meaning a safe bag-based filter replacement system. In cleanroom systems, BIBO is usually designed as BIBO Filter Housing. Filter Housing means the enclosure or box that holds the filter. In other words, BIBO Filter Housing is a filter housing with a mechanism that allows filter replacement through a bag, helping reduce contaminant release when removing contaminated filters.

BIBO is not a HEPA Filter. HEPA Filter stands for High Efficiency Particulate Air, meaning a high-efficiency air filter. A HEPA filter captures particles in the airflow. BIBO is the housing that holds the filter and supports contaminated filter replacement under better-controlled conditions. Inside a BIBO system, HEPA filters, ULPA filters, pre-filters, carbon filters, or other filter stages may be installed depending on design requirements.

ULPA Filter stands for Ultra Low Penetration Air, meaning an air filter with extremely low particle penetration. A pre-filter is a primary or coarse filter. A carbon filter is an activated carbon filter. These filters perform the filtration function, while BIBO supports safe filter replacement. Therefore, it is not accurate to say that BIBO “filters better” than HEPA; rather, BIBO helps replace HEPA or ULPA filters more safely after they have accumulated contaminants.

BIBO is commonly used in cleanroom HVAC systems, exhaust air paths, return air paths, AHUs, or ductwork serving high-risk areas. HVAC stands for Heating, Ventilation and Air Conditioning. AHU stands for Air Handling Unit. Ductwork means the air duct system.

In practice, BIBO is also known by several other names, such as Bag-In/Bag-Out System, BIBO Filter Housing, Safe Change Housing, Safe Change Filter Housing, or Containment Filter Housing. Safe Change Housing means a housing designed for safe filter replacement. Containment Filter Housing means a housing that supports contaminant-release control.

BIBO is often considered at locations where filters after operation may contain toxic dust, pharmaceutical active ingredients, microorganisms, aerosols, chemicals, or high-risk contaminants. Aerosols are airborne droplets or particles suspended in air. When the contaminated filter is removed from the system inside a more sealed bag, the risk of release and exposure is reduced compared with direct filter removal.

Why Is It Called Bag In Bag Out?

The term Bag In Bag Out comes directly from the operating sequence of the system. “Bag In” may be understood as bringing a bag or a new filter into a safe handling process. “Bag Out” means removing the contaminated filter in a sealed bag. Together, Bag In Bag Out describes the principle of using a bag to control the process of inserting the filter and removing the contaminated filter from the housing.

In a standard filter replacement method, the operator may open the housing door, directly access the filter, pull the contaminated filter out, and then install a new filter. This method may be suitable for low-risk areas where the filter only contains ordinary dust. However, in high-risk areas, the contaminated filter may contain active ingredients, microorganisms, toxic dust, or chemicals. In such cases, direct filter removal may cause release.

With BIBO, the bag is attached to the housing opening before the contaminated filter is removed. The operator opens the service door within the bag, removes the contaminated filter, pulls it into the bag, and then seals the bag. Once the filter is inside the sealed bag, the new filter is introduced according to the appropriate procedure. The entire operation centers on using a bag to reduce direct contact between the contaminated filter and the external environment.

Therefore, “Bag In Bag Out” does not mean the filter automatically becomes cleaner or has higher filtration efficiency. The term describes a safety principle: the contaminated filter is not removed in an open state, but is removed inside a more sealed bag to limit release. The value of BIBO lies in risk control during filter replacement, not in changing the filter grade.

Simply put, if the HEPA Filter is the component that captures particles during operation, BIBO is the mechanism that helps handle that component after it becomes contaminated. In a BIBO system, the used filter is not pulled directly into the external environment. It is handled inside a bag, enclosed, sealed, and processed according to procedure.

The name Bag In Bag Out also reminds operators that the bag is not an accessory of secondary importance. The bag is central to the operating principle. If the bag is incorrectly sized, too thin, torn, not clamped tightly, or sealed incorrectly, the BIBO system loses much of its protective value. In other words, the system is truly Bag In Bag Out only when the bag is used correctly throughout the filter replacement process.

What Principle Does BIBO Operate On?

BIBO operates on the principle of creating a physical barrier using a bag between the contaminated filter and the external environment. After a filter has operated for a long time, it may contain contaminants captured by the system. If the operator removes the filter directly, these contaminants may be released into the maintenance area. BIBO reduces this risk by keeping the filter removal operation within the bag.

In the BIBO principle, the bag acts as a temporary enclosure. It is attached to the housing opening and secured with a clamping mechanism. The operator then opens the service door, releases the contaminated filter, and pulls the filter into the bag. The filter does not leave the housing in an open state. It is only removed after it is inside the bag and the bag has been sealed.

This principle supports containment. Containment means the ability to control contaminants within an acceptable boundary. In the BIBO context, containment does not mean that the entire room or production line is absolutely isolated. It means that at the moment of filter replacement, contaminants on the used filter are better controlled, reducing their potential release into the surrounding environment.

BIBO also supports operator protection. The filter replacement operator is closest to the contaminated filter. If the filter contains active ingredient dust, microorganisms, chemicals, or hazardous particles, the operator may be exposed through inhalation, skin, eyes, or clothing. Working through the bag reduces direct contact with the contaminated filter.

In addition, BIBO supports environmental protection. If the contaminated filter is removed directly, dust may fall onto the floor, settle on tools, carts, garments, or technical surfaces. From there, contamination may spread to other areas. When the filter is sealed in the bag before removal, the risk of secondary contamination is reduced.

However, the BIBO principle is effective only when all related factors work properly together: the housing must be tight, the bag must be suitable, the bag clamp must be secure, the operator must follow the correct procedure, PPE must be suitable, and the used filter must be handled properly. If any of these factors fails, the Bag In Bag Out principle may not achieve the intended safety objective.

Basic Steps in the Bag In Bag Out Procedure

The Bag In Bag Out procedure may vary depending on the equipment type, contaminant type, and internal SOP of each facility. SOP stands for Standard Operating Procedure. The following steps describe only the general principle and do not replace official instructions from the facility or equipment manufacturer.

The first step is preparation. Operators must prepare PPE, a suitable BIBO bag, bag-sealing tools, warning labels if needed, containers for the used filter, and records. PPE stands for Personal Protective Equipment. Depending on the contaminant type, PPE may include gloves, goggles, masks, respirators, protective garments, or respiratory protection devices.

The next step is system inspection before operation. Operators need to inspect the housing, service door, bag clamping mechanism, bag attachment opening, bag condition, and surrounding area. If the SOP requires fan shutdown, air-path isolation, pressure reduction, or decontamination before filter replacement, those steps must be fully completed before the housing is opened.

The BIBO bag is then attached to the housing opening. The bag must be installed in the correct position and secured with a clamping ring or bag clamping mechanism. This is a very important step because if the bag is not attached tightly, dust or contaminants may escape when the service door is opened.

Once the bag is securely attached, the operator opens the service door within the bag and accesses the old filter. The filter is released from the filter-locking or clamping mechanism and then pulled into the bag. During the entire operation, the operator must avoid strong impact, avoid tearing the bag, and avoid excessively disturbing dust on the filter.

When the contaminated filter is inside the bag, the bag is sealed. Depending on the procedure, the bag may be tied, clamped, heat-sealed, or sealed using an approved method. Some procedures may require two sealing points to reduce leakage risk during bag separation and transport.

After the bag containing the contaminated filter is separated from the housing, the used filter must be disposed of according to the contaminant type. If the filter contains microorganisms, it may need to be handled as biological waste. If it contains pharmaceutical active ingredients or chemicals, safety, environmental, GMP, or internal requirements must be followed.

The new filter is then introduced and installed in the correct position. The installation direction, gasket, filter-locking mechanism, and housing condition should be checked. After the new filter is installed, differential pressure, HEPA leak testing, or scan testing may be required depending on system requirements.

The final step is documentation. Records should include the replacement date, operator, old filter code, new filter code, filter condition, differential pressure before and after replacement, test results, disposal method, and any deviations. In GMP cleanrooms or high-risk areas, documentation is important evidence that filter replacement is controlled.

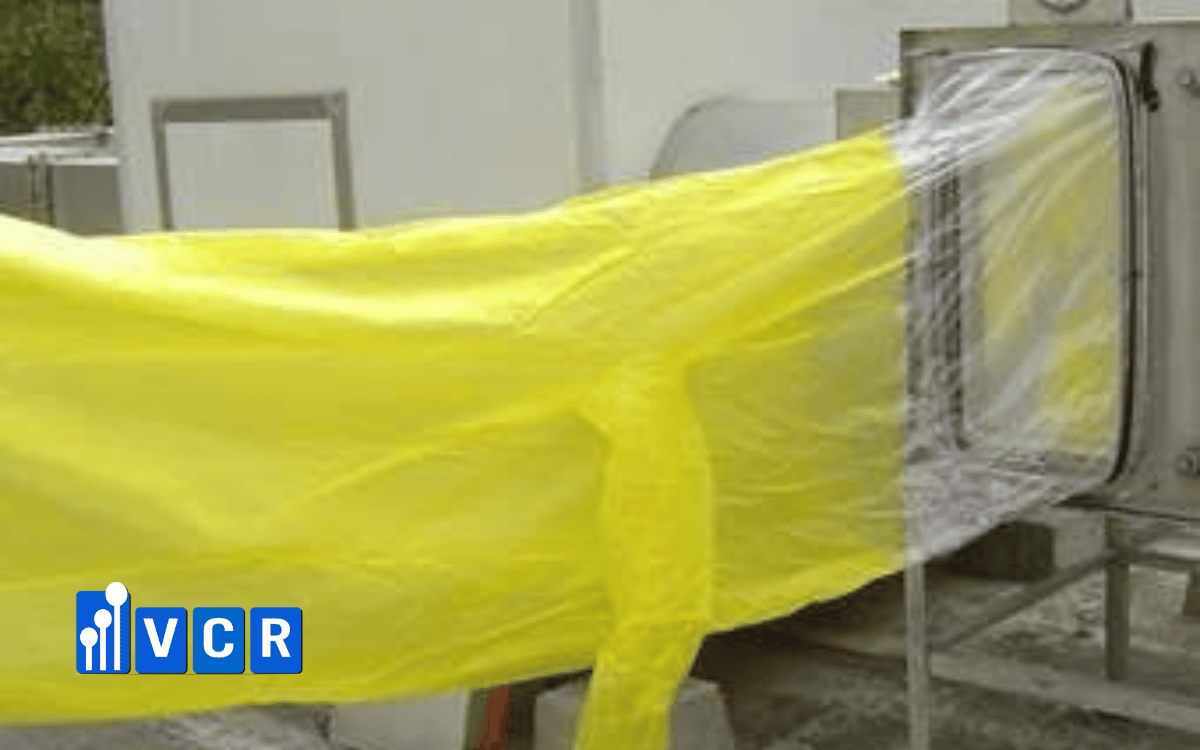

The Role of the BIBO Bag in the Operating Principle

The BIBO bag is the component that turns the Bag In Bag Out principle into a real operation. Without the bag, the system is essentially just a standard filter housing. The bag is the direct enclosure around the contaminated filter before it is removed from the system. Therefore, in the BIBO principle, the bag is not a secondary accessory but the central component.

After a filter has operated for a long time, dust, particles, microorganisms, active ingredients, or chemicals may accumulate on the surface and inside the filter media. If the filter is removed directly, these contaminants may be released. The BIBO bag places the filter into a more enclosed space before it is separated from the housing. Once the filter is inside the bag, the bag is sealed to reduce release risk during transport.

The BIBO bag must be correctly sized. If the bag is too small, the operator will have difficulty pulling the filter into it, increasing the risk of tearing the bag or striking the filter. If the bag is too large but not secured well, handling may become loose and difficult to control. The bag must also be strong enough to withstand the filter weight, pulling force, rotation, and sealing process.

The bag must be compatible with the contaminant type. In pharmaceutical environments, the bag may need to meet requirements related to active ingredient dust. In biological environments, it may need to be suitable for biological waste procedures. In chemical environments, compatibility with the contaminant or residue on the filter should be considered.

The bag clamping mechanism is also very important. The bag must be securely held at the housing opening so it does not detach when the door is opened or the filter is pulled. If the bag is not clamped tightly, gaps may appear and reduce containment effectiveness. Therefore, before operation, the bag, clamping ring, bag attachment edge, and bag integrity must be checked.

Correct bag sealing is the final but critical step. A bag may be attached correctly but still leak during transport if sealed incorrectly. Therefore, operators must be trained to tie, clamp, or heat-seal the bag according to the SOP. The BIBO bag only provides value when it is selected correctly, installed correctly, handled correctly, and processed correctly after containing the used filter.

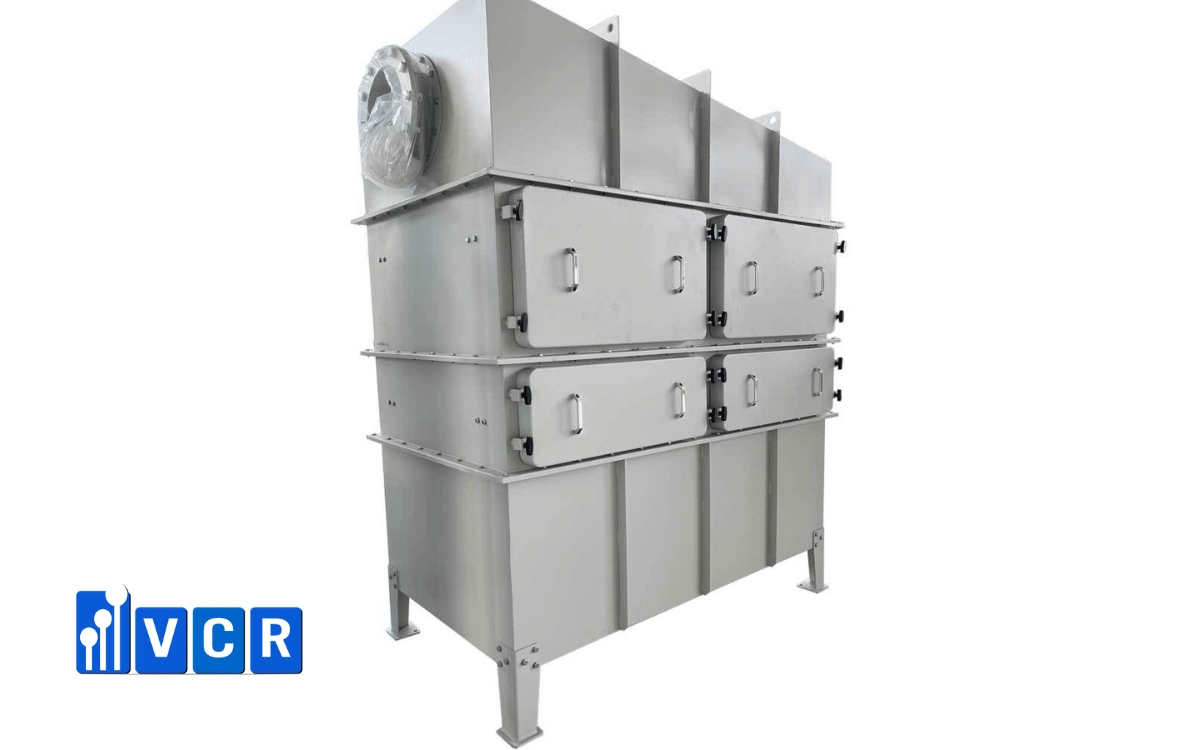

What Structure Allows BIBO to Operate According to the Bag In Bag Out Principle?

To operate according to the Bag In Bag Out principle, BIBO must have a suitable structure. The first component is the filter housing, meaning the enclosure or box that contains the filter. The housing is the main body of the equipment where the filter is installed. It must have a strong structure, good sealing, and compatibility with the duct system or AHU.

The service door allows operators to access the filter when replacement is required. In BIBO, the service door must be designed to work together with the BIBO bag. The operator does not simply open the door and pull the filter out, but works within the bag attached to the housing.

The bag attachment opening is a defining feature of BIBO. This is where the bag is attached to the housing before filter replacement. If the bag attachment opening is unsuitable or difficult to operate, the Bag In Bag Out principle will be hard to perform. The bag clamping ring or clamping mechanism holds the bag at the housing opening, preventing detachment or gaps when the filter is pulled.

The filter-locking or clamping mechanism holds the filter in the correct position inside the housing. During normal operation, this mechanism ensures that the filter does not shift. During replacement, the operator must release the filter lock within the bag to pull out the old filter. Therefore, the locking mechanism must be secure during operation while still being workable during bag-out.

A gasket is a sealing component. It ensures that air passes through the filter rather than around gaps. If the gasket does not seal properly, air may bypass the filter. In BIBO, the gasket remains important for filtration performance during operation, while the bag and bag clamp are critical during filter replacement.

The filter inside may be a HEPA Filter, ULPA Filter, or another filter stage. The differential pressure gauge helps monitor filter condition. Differential pressure means the pressure difference across the filter. When the filter becomes dirty, differential pressure usually increases. Monitoring differential pressure helps determine filter replacement timing and identify abnormalities.

Some BIBO systems include inspection ports or test ports. A scan test is a filter leak-scanning test. DOP/PAO testing uses test aerosol. These ports support filter sealing and leak testing after replacement.

The BIBO principle is effective only when the entire structure works properly together. The housing must be tight, the bag must be correct, the bag clamp must be secure, the gasket must seal properly, the filter lock must be operable, and the operator must have enough working space. If any component is unsuitable, the Bag In Bag Out process may not achieve the intended safety objective.

How Is the BIBO Principle Different from Standard HEPA Filter Replacement?

The difference between BIBO and standard HEPA filter replacement is not the HEPA filter grade, but the way the contaminated filter is removed from the system. With standard HEPA housing, the operator usually opens the housing door, accesses the filter more directly, and pulls the filter out. With BIBO, the contaminated filter is handled inside a bag, placed into the bag, and sealed before removal.

In low-risk systems, standard filter replacement may be suitable. If the filter contains only environmental dust, has no hazardous contaminants, and the operator uses suitable PPE, direct filter removal may be controlled through a standard maintenance SOP. In that case, standard housing has the advantages of simplicity, lower cost, and lower space requirements.

However, in high-risk areas, the contaminated filter may contain pharmaceutical active ingredients, microorganisms, aerosols, toxic dust, or chemicals. If removed directly, these contaminants may fall out, settle on surfaces, or become airborne. BIBO reduces this risk by enclosing the filter in a bag before removing it from the housing.

BIBO does not make the HEPA Filter perform better. If the filter is HEPA H13, it remains H13. If the filter is HEPA H14, it remains H14. What BIBO does better is control the contaminated filter replacement process. That is why BIBO is often called Safe Change Housing.

Another difference is the operating requirement. Standard housing usually has a simpler filter replacement procedure. BIBO requires a suitable bag, bag attachment, bag sealing, used-filter disposal, and trained operators. Therefore, BIBO should be used where there is real risk, not merely by habit or because the equipment seems advanced.

In summary, standard housing is suitable for low-risk filters. BIBO is suitable when the filter may contain hazardous contaminants or requires containment. The core difference is that one method removes the filter more directly, while the other places the contaminated filter into a bag before removal.

Why Does BIBO Help Reduce Release During Filter Replacement?

BIBO helps reduce release during filter replacement because it controls the highest-risk point: the moment when the contaminated filter is separated from the system. During operation, the filter captures particles and contaminants. Once the filter is dirty, these contaminants may remain on the filter surface or inside the filter media. If the filter is removed directly, they may be disturbed and released.

With BIBO, filter removal occurs inside the bag. The bag is attached to the housing opening before the filter is pulled out. This gives dust or contaminants on the filter less opportunity to fall directly into the maintenance area. Once the filter is inside the bag, the bag is sealed before separation from the housing and transport.

This mechanism creates a physical barrier. A physical barrier does not eliminate the contaminant, but it keeps it within a better-controlled boundary. Instead of exposing the contaminated filter directly to the air in the technical room, BIBO places it into a bag before movement. This makes a major difference in applications involving active ingredient dust, microorganisms, or chemicals.

BIBO also reduces direct operator contact. With standard replacement, the operator may need to hold, pull, rotate, or lift the contaminated filter in an open condition. With BIBO, careful handling is still required, but the filter is within the bag. This helps reduce the chance that dust will settle on gloves, garments, or tools.

In addition, BIBO supports used-filter control from the first step. Once the contaminated filter is inside the bag, it can be labeled, transported internally, and processed according to the appropriate procedure. If the used filter is classified as hazardous waste, initial enclosure is very important.

However, BIBO does not replace all safety measures. Operators still need suitable PPE. SOPs must be clear. If a biological agent requires decontamination, BIBO does not replace decontamination. If the used filter is hazardous waste, the bag containing the filter must still be handled according to regulations. BIBO reduces release, but it does not automatically eliminate all risk if handling or disposal is incorrect.

Does BIBO Increase HEPA Filtration Efficiency?

BIBO does not increase the filtration efficiency of a HEPA Filter. This point must be emphasized because many people confuse the filter with the housing. The HEPA Filter is the component that determines particle capture efficiency. BIBO is the housing or system that supports bag-based filter replacement. These two components have different roles.

Filtration efficiency depends on filter grade, filter media, filter design, installation sealing, airflow rate, face velocity, and leak testing conditions. If HEPA H13 is installed inside BIBO, the grade remains H13. If HEPA H14 is installed, the grade remains H14. BIBO does not turn H13 into H14 and does not make the filter media more efficient.

The value of BIBO is “safer filter replacement,” not “cleaner filtration.” During operation, air still passes through the HEPA or ULPA filter according to the design. When the filter needs replacement, BIBO helps operators remove the contaminated filter under conditions that better limit release. Therefore, BIBO should be evaluated by its ability to support containment during maintenance, not by particle filtration efficiency.

This does not mean housing is unimportant for filtration performance. The housing must still be tight, the gasket must seal properly, and the filter must be installed correctly. If the housing leaks or the filter is installed incorrectly, air may bypass through gaps. But this is an installation sealing issue, not because BIBO increases the filter grade.

When selecting equipment, two questions must be separated. The first question is what filter grade the system needs to meet cleanliness or particle-control requirements. The second question is whether the used filter needs to be replaced with a safety bag. The first question is related to HEPA or ULPA. The second question is related to BIBO.

The BIBO Principle in Cleanroom Containment Control

Containment means the ability to control contaminants within an acceptable boundary. In cleanrooms, containment is not only related to room pressure, airflow direction, or production equipment. It also relates to maintenance, cleaning, filter replacement, and waste handling. BIBO supports containment at a very important moment: contaminated filter replacement.

During system operation, the filter captures contaminants in the airflow. After some time, the filter becomes the place where those contaminants accumulate. If the filter is removed directly, containment may be broken because captured contaminants can be released into the maintenance area. BIBO reduces this risk by enclosing the filter in a bag before removal.

In pharmaceuticals, containment may relate to active ingredient dust, potent compounds, cytotoxic drugs, or cross-contamination risks. In biology, containment may relate to microorganisms or biological aerosols. In chemicals, containment may relate to toxic dust or hazardous particles. In laboratories, containment may vary depending on sample types and procedures. In these contexts, BIBO helps better control the filter replacement stage.

However, BIBO is not the entire containment strategy. In high-risk areas, multiple control layers may be required. These may include suitable pressure control, controlled airflow, closed equipment, cleaning procedures, PPE, SOPs, decontamination, multi-layer packaging, used-filter disposal, and operating records. BIBO is an important link in that control chain.

If BIBO is installed but operators are not trained, no SOP exists, or used filters are not handled properly, containment can still fail. Conversely, if BIBO is selected for the right location, the correct bag is used, the procedure is followed, and records are complete, the system can significantly reduce release risk during maintenance.

In GMP cleanrooms, GMP stands for Good Manufacturing Practice. Risk-bearing maintenance activities such as filter replacement must be controlled through procedures and records. BIBO supports this requirement by providing a safer filter replacement method for high-risk locations.

The BIBO Principle in Pharmaceutical Factories and API Areas

In pharmaceutical factories, the BIBO principle is commonly applied in areas where active ingredient dust may be generated. API stands for Active Pharmaceutical Ingredient. When powdered APIs are handled, extraction systems, exhaust air systems, or return air systems may capture API dust on HEPA or ULPA filters. After a period of operation, the filter may become an exposure source if removed directly.

BIBO removes the contaminated filter inside a sealed bag. When the filter contains API dust, the operator attaches the bag to the housing, works within the bag, pulls the contaminated filter into the bag, and seals the bag before removing it from the system. This helps reduce API dust release in the maintenance area and reduces direct contact between the operator and the contaminated filter.

For potent compounds, meaning highly active compounds, risk must be controlled even more strictly. Even a small amount of active ingredient dust may create risk depending on toxicity and exposure limits. Therefore, BIBO is often considered in API weighing rooms, potent compound handling areas, high-risk product manufacturing areas, or exhaust air paths from these zones.

However, BIBO does not replace the entire pharmaceutical containment strategy. For high-risk active ingredients, closed equipment, suitable pressure control, controlled airflow, specialized PPE, cleaning procedures, decontamination, used-filter packaging, and GMP records may also be required. BIBO is only one control layer during filter replacement, but it is an important one because this is the moment when the contaminated filter leaves the system.

When applying the BIBO principle in API areas, service space must be considered. Filters may be large, heavy, or difficult to pull if the housing is installed in a cramped location. If there is not enough space to attach the bag, pull the filter, and seal the bag, the operation may increase risk. Therefore, BIBO should be considered from the HVAC design stage, not added too late after the layout has already been fixed.

The BIBO Principle in Biology, Chemicals, and Laboratories

In biological applications, the BIBO principle is used when filters may contain microorganisms, aerosols, or biological agents. Biosafety means biological safety. Aerosols are airborne droplets or particles suspended in air. If filters in exhaust systems retain these particles, direct filter removal may release biological agents into the maintenance area.

BIBO reduces this risk by placing the contaminated filter into a sealed bag before removing it from the housing. However, for some biological agents, decontamination may be required before filter replacement. Decontamination helps reduce biological load on the filter or inside the housing. BIBO provides physical enclosure during removal, but it does not replace decontamination if the procedure requires it.

In chemical applications, BIBO is suitable when the main risk is dust, particles, or material captured on the filter. If a chemical powder handling system has a filter that captures hazardous particles, the contaminated filter should be replaced using a better-controlled method. BIBO places the filter into a bag, reduces direct contact, and lowers the risk of dust falling into the maintenance area.

However, if the main risk is toxic gas or chemical vapor, BIBO is not the primary treatment solution. In such cases, specialized gas treatment systems such as adsorption, absorption, neutralization, or a technology suitable for the gas type are required. BIBO only supports safer filter replacement when the filter may contain contaminants requiring control.

In laboratories, the BIBO principle may be applied to exhaust air systems, return air systems, or filter points related to high-risk samples. Laboratories often involve changing sample types and procedures. Therefore, the need for BIBO must be based on the risk assessment of each system, not merely the name of the laboratory.

BIBO also does not replace a Fume Hood or Biosafety Cabinet. A Fume Hood is a chemical fume hood. A Biosafety Cabinet is a biological safety cabinet. These devices control risk during actual work. BIBO controls risk when replacing filters that have accumulated contaminants after operation. These devices have different roles and may complement one another in the overall system.

Conditions for the BIBO Principle to Work Effectively

BIBO works effectively only when the equipment, bag, procedure, and people work together correctly. The first condition is that the housing must be tight. If the housing leaks or is deformed, the system may fail filtration and containment requirements. The service door, bag attachment opening, gasket, and duct connection points must all provide suitable sealing.

The second condition is that the BIBO bag must be correctly sized and strong enough. The bag must match the filter, housing, and replacement operation. If the bag is too thin, torn, or incorrectly sized, release risk may increase. The bag must also be suitable for the contaminant and the used-filter disposal method.

The third condition is that the bag clamping mechanism must be secure. The bag must remain sealed at the housing opening throughout door opening and filter pulling. If the bag clamp is loose, the bag may detach or gaps may appear. In that case, the Bag In Bag Out principle is no longer assured.

The fourth condition is that the filter must be installed in the correct position and the gasket must seal properly. A gasket is a sealing component. If the filter is misaligned or the gasket does not contact properly, air may bypass during operation. Although BIBO focuses on safe filter replacement, filter sealing remains essential for correct system operation.

The fifth condition is that operators must be trained. BIBO is not equipment that becomes automatically safe after installation. Filter replacement personnel must know how to inspect the bag, attach the bag, release the filter, pull it into the bag, seal the bag, dispose of the used filter, and complete documentation. If the operation is incorrect, risk may still occur.

The sixth condition is that the SOP must be clear. The SOP should define the operation sequence, PPE, system shutdown conditions, bag sealing method, incident response, used-filter transport, and required records. For high-risk contaminants, the SOP must be even more detailed.

The seventh condition is sufficient service space. BIBO requires space to attach the bag, open the door, pull the filter, seal the bag, and remove the used filter. If the housing is installed in a cramped location, the operation may be difficult to perform correctly, increasing the risk of tearing the bag or releasing contaminants.

Finally, the used filter must be handled properly. A filter inside a bag does not mean the risk is eliminated. If the filter contains microorganisms, active ingredients, or chemicals, the bag containing the filter must still be transported, stored, and disposed of according to suitable requirements. When these conditions are met, the BIBO principle provides real practical value.

Inspection and Qualification of the BIBO Operating Principle

BIBO qualification should not stop at checking whether the HEPA filter passes. Because the core value of BIBO lies in the Bag In Bag Out principle, qualification must also check whether safe bag-based filter replacement can actually be performed. A system may have a compliant filter, but if the bag cannot be attached, the filter cannot be pulled out, or the bag cannot be sealed correctly, it does not meet the BIBO objective.

First, the housing appearance, material, and dimensions should be checked. The housing must match the drawings, be installed in the correct position, show no deformation, and have surfaces suitable for cleaning requirements. Connections to ductwork or the AHU must be secure and tight.

Next, the bag attachment opening, bag clamping mechanism, and BIBO bag should be checked. The bag must fit the housing opening, and the clamp must hold the bag firmly without abnormal gaps. The bag should be checked for tears, punctures, or incorrect sizing. If the bag is unsuitable, the Bag In Bag Out operation will not be safe.

The service door, gasket, and filter lock should also be checked. The door must open and close smoothly. The gasket must contact properly. The filter lock must hold the filter in the correct position while still being operable during replacement. The filter must be installed in the correct direction and frame.

The differential pressure gauge should be checked to ensure it is easy to observe and works properly. Airflow direction must match the design. If the system has test ports, accessibility should be verified. HEPA leak testing checks for leakage in the HEPA filter. Scan testing is filter leak scanning. DOP/PAO testing uses test aerosol. If required by the project, these tests should be performed according to the proper procedure.

A particularly important item is simulated filter replacement. The qualification team should verify that operators can attach the bag, open the door, remove the filter, pull the filter into the bag, seal the bag, and remove the contaminated filter bag. If the simulated operation is difficult due to insufficient space or inconvenient design, adjustments should be made before the system enters operation.

Qualification documentation should include drawings, technical specifications, filter certificates, operating instructions, filter replacement instructions, test results, qualification records, and maintenance recommendations. For BIBO, documentation not only proves that the equipment has been installed, but also proves that the Bag In Bag Out principle can be performed under real operating conditions.

Common Mistakes in Understanding the BIBO Principle

The first mistake is thinking BIBO is a HEPA filter. BIBO is not a filter. It is a housing or safe bag-based filter replacement system. HEPA, ULPA, or other filter stages may be installed inside BIBO. If high filtration efficiency is required, the correct filter must be selected. If safe filter replacement is required, BIBO should be considered.

The second mistake is thinking BIBO increases filtration efficiency. BIBO does not turn HEPA H13 into H14 and does not make the filter capture particles more efficiently. It only helps control contaminated filter removal more safely. Misunderstanding this point may lead to selecting equipment for the wrong objective.

The third mistake is focusing only on the housing and ignoring the bag. The BIBO bag is central to the Bag In Bag Out principle. If the bag is incorrectly sized, too thin, torn, or incompatible with the contaminant, the system will not achieve the intended containment objective.

The fourth mistake is not checking the bag clamping mechanism. The bag must be held firmly at the housing opening. If the clamp is loose or difficult to use, the bag may detach or gaps may appear when the filter is pulled. This can significantly reduce safety performance.

The fifth mistake is not allowing enough service space. BIBO requires clearance to attach the bag, open the door, pull the filter into the bag, and seal the bag. If the housing is too close to a wall or blocked by other equipment, the BIBO principle is difficult to perform correctly.

The sixth mistake is not training operators and not having a filter replacement SOP. Good equipment can still create risk if used incorrectly. Filter replacement personnel must understand the Bag In Bag Out sequence, bag handling, sealing method, and used-filter disposal process.

The final mistake is thinking BIBO is automatically safe in all situations. In reality, BIBO is safe only when it is selected for the right location, correctly configured, used with the right bag, operated correctly, and supported by proper used-filter handling. The biggest mistake is understanding BIBO as equipment that “filters better,” while its real nature is that it “replaces filters more safely.”

FAQ – Frequently Asked Questions About the Operating Principle of BIBO

Question: How does BIBO work?

BIBO works by using a safety bag to handle the contaminated filter. The operator attaches the bag to the housing, removes the filter within the bag, pulls the filter into the bag, seals the bag, and only then removes the filter from the system.

Question: Why is it called Bag In Bag Out?

It is called Bag In Bag Out because the entire filter replacement principle centers on using a bag to bring the filter or bag into the handling process and remove the contaminated filter inside a sealed bag. The name directly describes how the system operates.

Question: What does Bag In mean?

Bag In may be understood as bringing a bag or new filter into the safe handling process. In practice, it relates to using the bag as part of the process for introducing a filter or preparing filter replacement under controlled conditions.

Question: What does Bag Out mean?

Bag Out means removing the contaminated filter from the system in a sealed bag. The filter is pulled into the bag, the bag is sealed, and only then is the contaminated filter separated from the housing and handled according to procedure.

Question: Is BIBO a HEPA Filter?

No. BIBO is not a HEPA Filter. BIBO is a housing or safe bag-based filter replacement mechanism. A HEPA Filter is a high-efficiency air filter installed inside the housing.

Question: Does BIBO increase HEPA filtration efficiency?

No. BIBO does not increase HEPA filtration efficiency. If HEPA H13 is installed, the filter grade remains H13; if HEPA H14 is installed, it remains H14. BIBO only helps replace filters more safely.

Question: What is the role of the BIBO bag?

The BIBO bag acts as a physical barrier that encloses the contaminated filter before it is removed from the housing. It helps reduce direct contact and limits the release of dust, microorganisms, active ingredients, or contaminants during filter replacement.

Question: How does BIBO reduce contaminant release?

BIBO reduces release by keeping filter removal within the bag, placing the contaminated filter into the bag before separation from the housing, and sealing the bag before transport or disposal.

Question: Is PPE required when replacing filters with BIBO?

Yes. BIBO does not replace PPE. Operators must still use personal protective equipment suitable for the contaminant type and the facility’s SOP.

Question: Does BIBO replace SOP?

No. BIBO does not replace SOP. The equipment only supports safer handling. The filter replacement sequence, bag sealing method, used-filter disposal, and documentation must still be clearly defined in the SOP.

Question: When should simulated filter replacement be checked?

Simulated filter replacement should be checked during qualification or before official operation. This verifies that there is enough space to attach the bag, pull the filter, seal the bag, and remove the contaminated filter bag.

Question: What areas is BIBO suitable for?

BIBO is suitable for areas where used filters may contain hazardous contaminants, such as pharmaceutical factories, API areas, biological laboratories, chemical areas, exhaust air systems, return air systems, AHUs, or ductwork serving high-risk zones.

Conclusion: Bag In Bag Out Is a Safe Filter Replacement Principle, Not a Cleaner Filtration Principle

BIBO is called Bag In Bag Out because the entire filter replacement operation centers on using a bag to insert the filter and remove the contaminated filter from the system under better-controlled conditions. The name accurately describes the nature of the equipment: using a bag as a physical barrier to reduce release when replacing filters that have accumulated contaminants.

The core value of BIBO is not increasing the filtration efficiency of HEPA or ULPA filters, but making contaminated filter replacement safer. BIBO does not make the filter cleaner, does not change the filter grade, and does not replace PPE or SOPs. It is effective only when the housing is tight, the bag is correct, the clamp is secure, operators are trained, the SOP is clear, and the used filter is handled properly.

For pharmaceutical cleanrooms, biological areas, chemical zones, laboratories, or high-risk HVAC systems, understanding the BIBO principle correctly helps select the right equipment, arrange the correct installation location, and operate the system according to the right procedure. When properly applied, Bag In Bag Out is an important principle for controlling maintenance risks and maintaining the controlled state of the cleanroom system.
